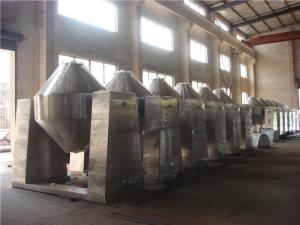

SZH Series Double Conical Mixer
Description:
It would send the powder or grain state materials into conical mixer by vacuum feeder or manual ; along with the conical cylinder rotating, the materials make complex movements inside the cylinder to achieve good mixing efficiency .
It's energy-saving, and easy to operate, moreover, the labor intensity is low, and the working efficiency is high.
Stainless steel material, meet GMP standard, durable and strong.
Simple structure, well- polished surface, easy to maintain and clean.
Air tight on discharging and feeding hole.
Customized design to meet special need :
Deflector inside to make better mixing effect
Safety guardrail on side
Add nozzles to mix powder with liquid
Can be changed into vacuum dryer.
Product details: SZH Series Double cone Mixer (double-Conical Rotating Mixing Machine for chemical industry) ( Conical rotary mixer )
| Application: | Foodstuff / Pharmaceutical | Motor: | SEW ABB SIEMENS |
| Control System: | HMI | Condition: | Granulate |
| Capacity (L/Bat): | 30 – 10000L | MOC: | SUS316/SUS304/ CARBON STEEL ,ETC |
| Document: | FAT/ IQ / OQ / PQ | Power: | Customized |
Technical parameter:
| Spec | Total volume (L) | Working capacity (L) | Material feed (kg) | Speed (rpm) | Power kw | Weight(kg) |
| 50 | 50 | 25 | 15 | 25 | 0.55 | 500 |
| 150 | 150 | 75 | 45 | 20 | 0.75 | 650 |
| 300 | 300 | 150 | 90 | 20 | 1.1 | 820 |
| 500 | 500 | 250 | 150 | 18 | 1.5 | 1250 |
| 1000 | 1000 | 500 | 300 | 15 | 3 | 1800 |
| 1500 | 1500 | 750 | 450 | 12 | 4 | 2100 |
| 2000 | 2000 | 1000 | 600 | 12 | 5.5 | 2450 |
| 3000 | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
| 4000 | 4000 | 2000 | 1200 | 9 | 7.5 | 3300 |
| 5000 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
| 6000 | 6000 | 3000 | 1800 | 8 | 11 | 4550 |
| 8000 | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
| 10000 | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
Features
Design is GMP.
All Product contact parts AISI 316/ 316L & non-contact parts AISI 304. Or completely 304.
Simple & compact Design for Easy to operate, clean, convenient & user friendly.
Automated mixing in single bowl.
Dust free operation.
Continuous rotation of container, material will make complex impacting motion in the container and reach to uniform mixing.
Rapid & Complete discharge / Zero holdup after discharge
The product mixed is homogeneous with uniform properties..
Main Application
SZH Series Double Cone mixer is suitable for mixing the powder and grain state materials in pharmacy, chemical, food, building materials and other industries.
